Evo3S Display 12"inch, Plotter - Sounder CHIRP - Radar  SIMRAD
Evo3S Display 12"inch, Plotter - Sounder CHIRP - Radar  SIMRAD
Product is available with up to 12 installments.
Applies only to a combination of products that accept installments.

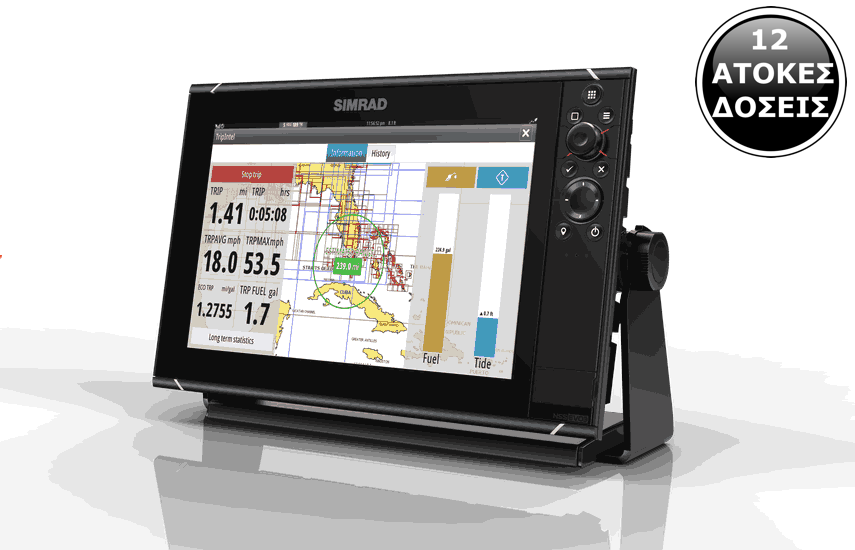

NSSevo3 12-inch display with GPS, sounder & Wi-Fi & HDMI out. Includes world basemap. Radar is not included.
Model: 12EVO3
Price: 4,298.39€
Price with VAT: 5,330.00€
Upon Order
Quantity:

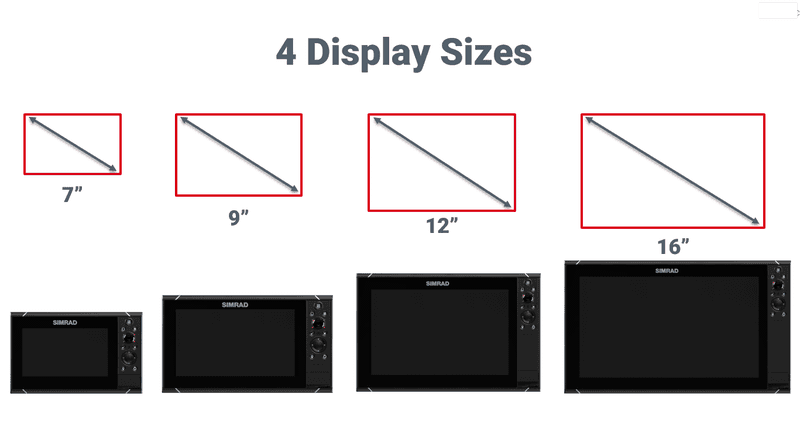

Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS12 evo3 features a high-definition 12-inch display that offers a big-picture view of charts, radar, and sonar. Includes world basemap.- 12-inch widescreen SolarMAX™ HD display

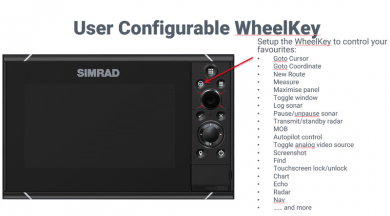

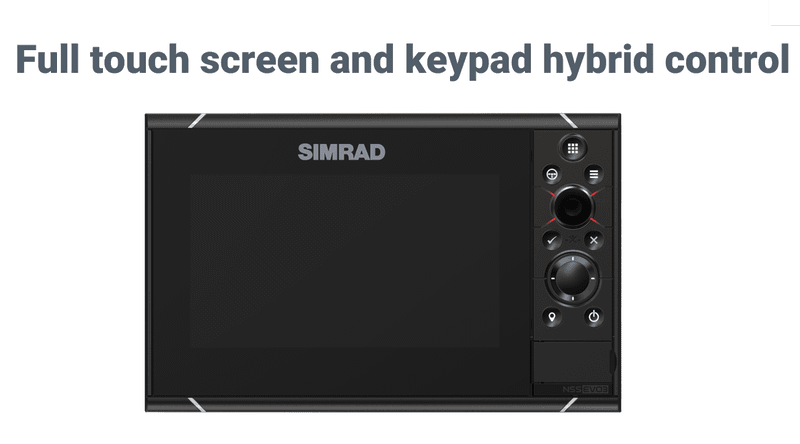

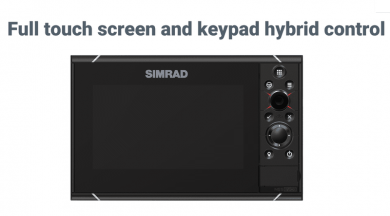

  • Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dial

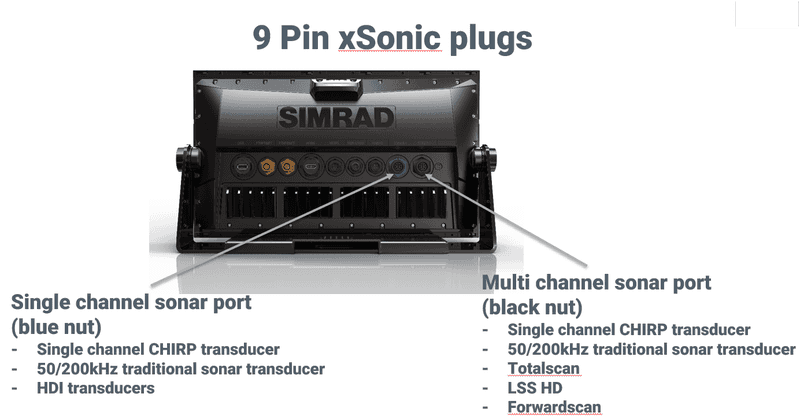

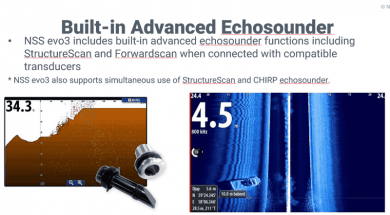

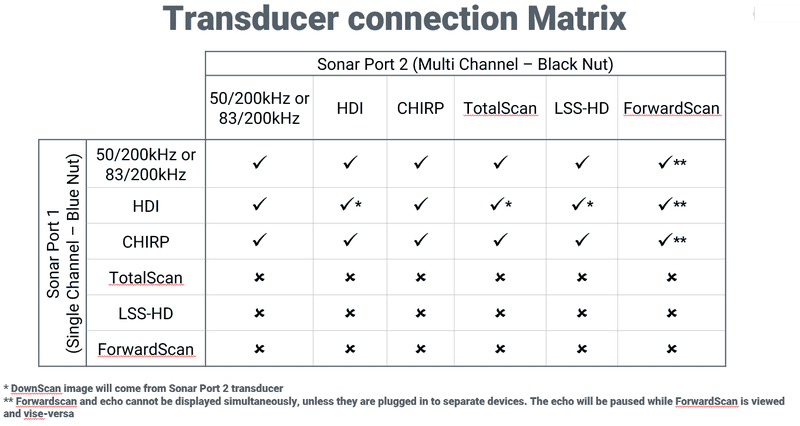

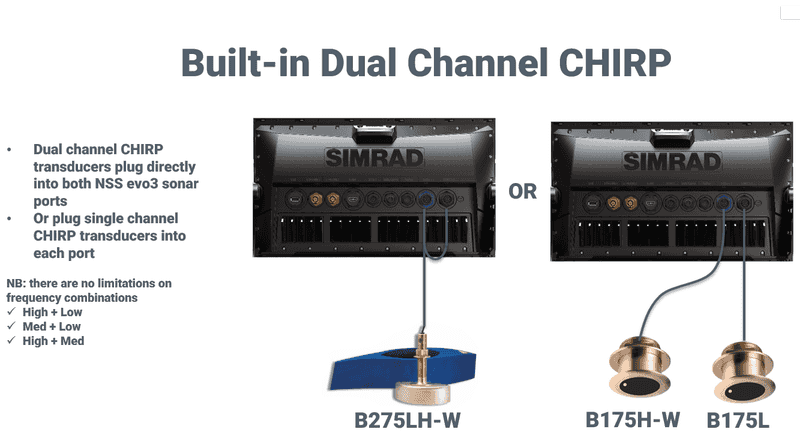

  • Integrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging
  • Add StructureScan® 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules
  • Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions

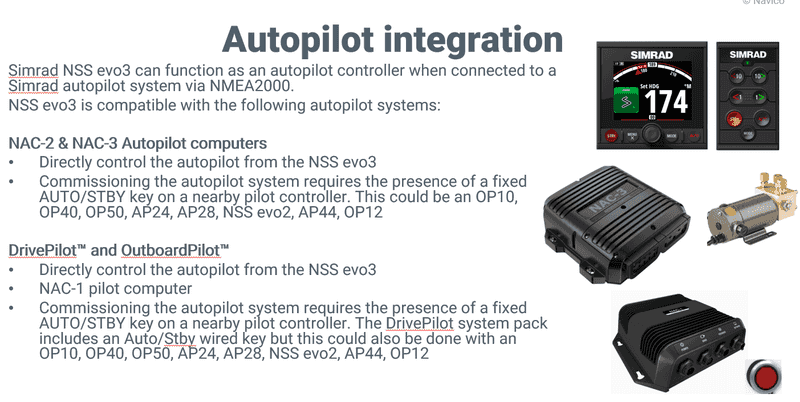

  • Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
  • NMEA 2000® connectivity enables integrated engine monitoring, sound system control, and much more
  • Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver
  • Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing (automatic routing unavailable in North America)
  • Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control

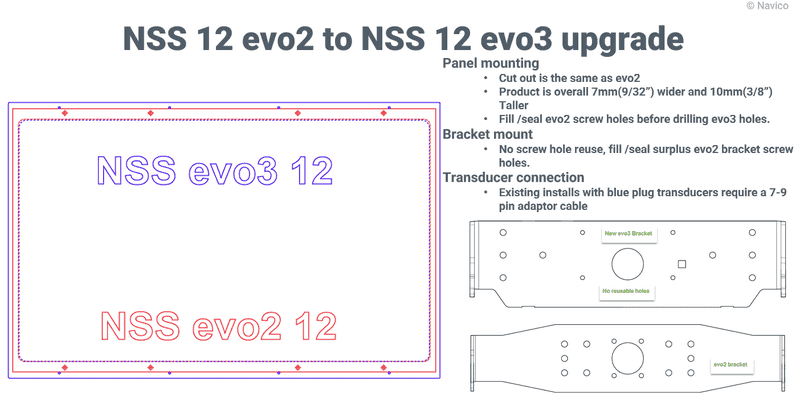

  • Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere
  • Includes world basemap

Physical

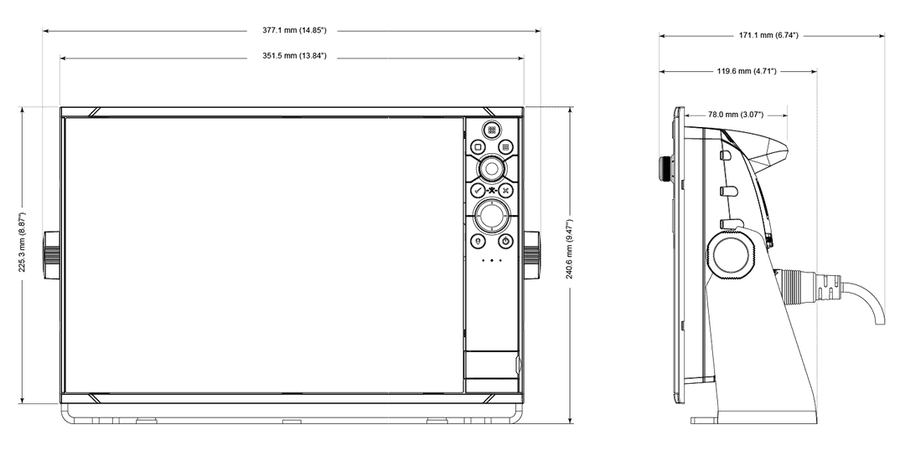

Dimensions 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71)
Weight 3.10kg/6.83lb

Enviromental

Operating temperature range -15°C to +55°C (5° F to 131° F)
Environment Shock Vibration 100,000 cycles of 20G
Storage temperature range -20°C to +60°C (4°F to 140°F)
Water resitance IPX6 and 7

Power

Supply voltage 10 - 31.2 V DC
Fuse rating 5A
Power consumption (Max) 30W

Display

Display backlight color White
Display resolution 800 x 1280
Display screen brightness 1200 nits
Display sizeand type High Visibility SolarMax HD® IPS 7" optically bonded TFT
Display viewing angles 80° top/bottom, 80° left/right

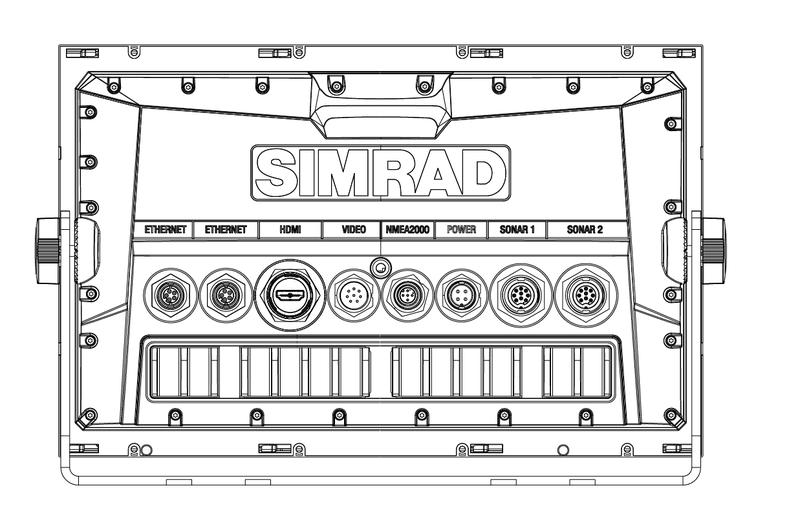

Conncetivity

Ethernet 2 x 5 pin yellow connector x 1 Mbit
Bluetooth Internal
NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 2000 PGNs Receive only

Options for Navionics Maps & C-MAP

C-MAP ÅM-Y111 : East Mediterranean Black Caspian Seas, MAX-N+: Wide
Click here to see the area
Price 210 € + VAT

EM-Y128 : Central Aegean Sea, MAX-N+ : Local
Click here to see the area
Price130 € + VAT


EM-Y130 : South Aegean Sea, MAX-N+ : Local

Click here to see the area
Price 130 € + VAT


EM-Y129 : North Aegean Sea, MAX-N+ : Local

Click here to see the area
Price 130 € + VAT


EM-Y151 : MAX-N+ L GREECE WEST COASTS:Local

Click here to see the area

Price 130 € + VAT

Navionics Gold Small - SD Card 43XG/MSD
CLICK HERE to see the Map Coverage
Price 150 € + VÁT

Navionics Small Platinum+
CLICK HERE to see the Map Coverage
Price 250 € + VÁT

Navionics 43XG - Mediterranean Sea & Black Sea - SD Card 43XG/MSD
CLICK HERE to see the Map Coverage
Price 250 € + VÁT

NAVIONICS EU Mediterranean East Platinum Marine Charts
CLICK HERE to see the Map Coverage
Price 395 € + VÁT

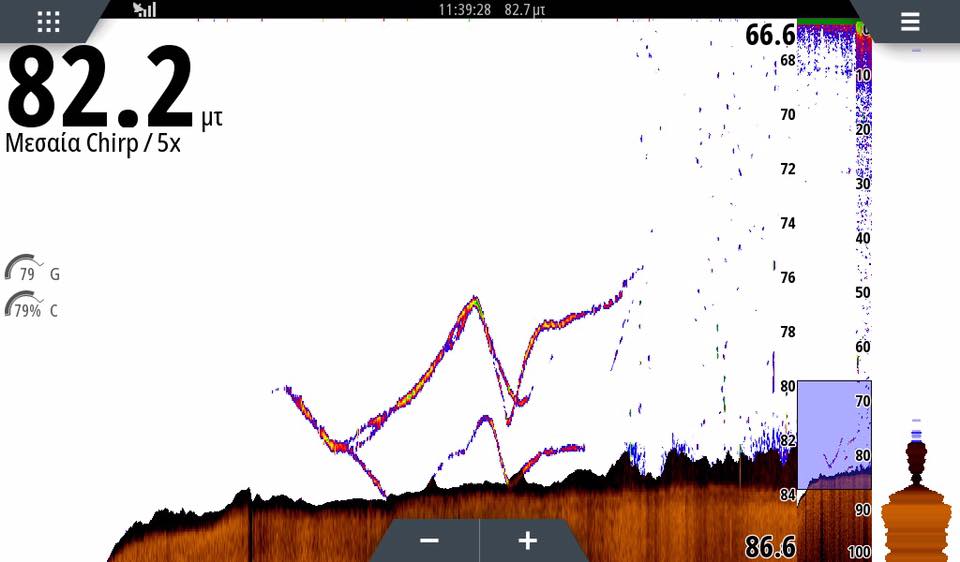

 TM150 Chirp with  300watt
TM150 Chirp with 300watt

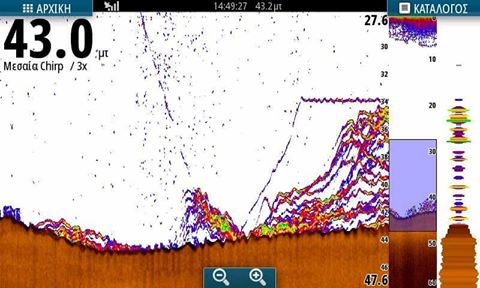

 NSS EVO 2 TM 265 MED-LOW
NSS EVO 2 TM 265 MED-LOW
 83 khz tm 150
83 khz tm 150
 200khz balades with tm 150
200khz balades with tm 150
 NSS7 TM150M
NSS7 TM150M
 Go7 xse tm 150
Go7 xse tm 150
 NSS evo2 + 200 kHz P66
NSS evo2 + 200 kHz P66
 Evo2 - P66 200 kHz
Evo2 - P66 200 kHz
 Evo2 TM150
Evo2 TM150
 Evo3S Display 12\"inch,  Plotter - Sounder CHIRP - Radar
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
 SIMRAD NSS Evo3 12\"inch
SIMRAD NSS Evo3 12"inch
Product Description

Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS12 evo3 features a high-definition 12-inch display that offers a big-picture view of charts, radar, and sonar. Includes world basemap.- 12-inch widescreen SolarMAX™ HD display
  • Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dial
  • Integrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging
  • Add StructureScan® 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules
  • Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions
  • Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
  • NMEA 2000® connectivity enables integrated engine monitoring, sound system control, and much more
  • Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver
  • Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing (automatic routing unavailable in North America)
  • Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control
  • Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere
  • Includes world basemap

Tech Specifications

Physical

Dimensions 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71)
Weight 3.10kg/6.83lb

Enviromental

Operating temperature range -15°C to +55°C (5° F to 131° F)
Environment Shock Vibration 100,000 cycles of 20G
Storage temperature range -20°C to +60°C (4°F to 140°F)
Water resitance IPX6 and 7

Power

Supply voltage 10 - 31.2 V DC
Fuse rating 5A
Power consumption (Max) 30W

Display

Display backlight color White
Display resolution 800 x 1280
Display screen brightness 1200 nits
Display sizeand type High Visibility SolarMax HD® IPS 7" optically bonded TFT
Display viewing angles 80° top/bottom, 80° left/right

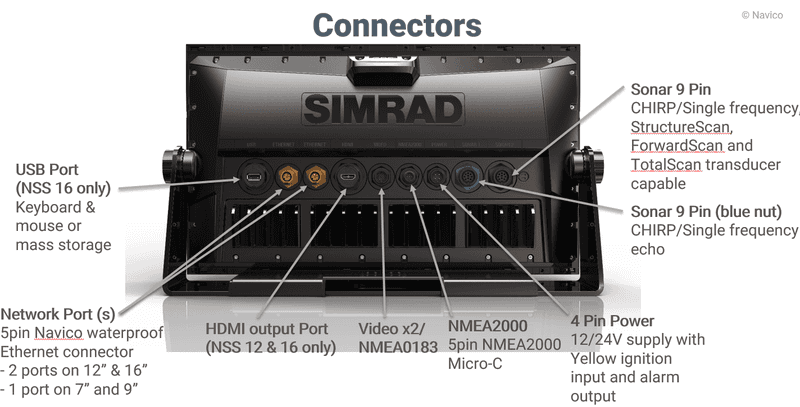

Conncetivity

Ethernet 2 x 5 pin yellow connector x 1 Mbit
Bluetooth Internal
NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 2000 PGNs Receive only


Extra Equipment

Options for Navionics Maps & C-MAP

C-MAP ÅM-Y111 : East Mediterranean Black Caspian Seas, MAX-N+: Wide
Click here to see the area
Price 210 € + VAT

EM-Y128 : Central Aegean Sea, MAX-N+ : Local
Click here to see the area
Price130 € + VAT


EM-Y130 : South Aegean Sea, MAX-N+ : Local

Click here to see the area
Price 130 € + VAT


EM-Y129 : North Aegean Sea, MAX-N+ : Local

Click here to see the area
Price 130 € + VAT


EM-Y151 : MAX-N+ L GREECE WEST COASTS:Local

Click here to see the area

Price 130 € + VAT

Navionics Gold Small - SD Card 43XG/MSD
CLICK HERE to see the Map Coverage
Price 150 € + VÁT

Navionics Small Platinum+
CLICK HERE to see the Map Coverage
Price 250 € + VÁT

Navionics 43XG - Mediterranean Sea & Black Sea - SD Card 43XG/MSD
CLICK HERE to see the Map Coverage
Price 250 € + VÁT

NAVIONICS EU Mediterranean East Platinum Marine Charts
CLICK HERE to see the Map Coverage
Price 395 € + VÁT
Instalations

pic4""

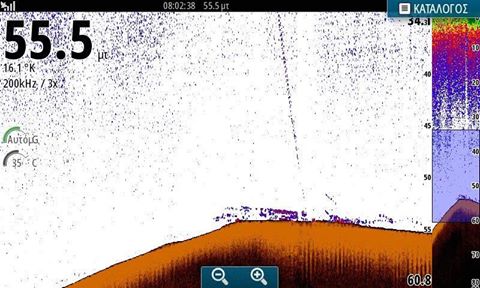

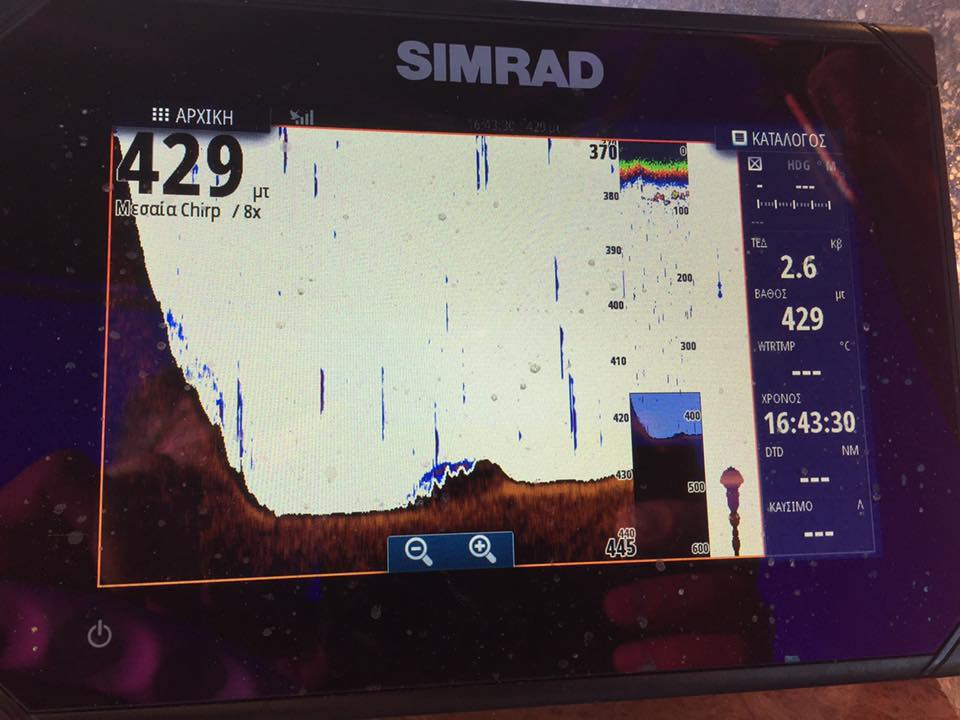

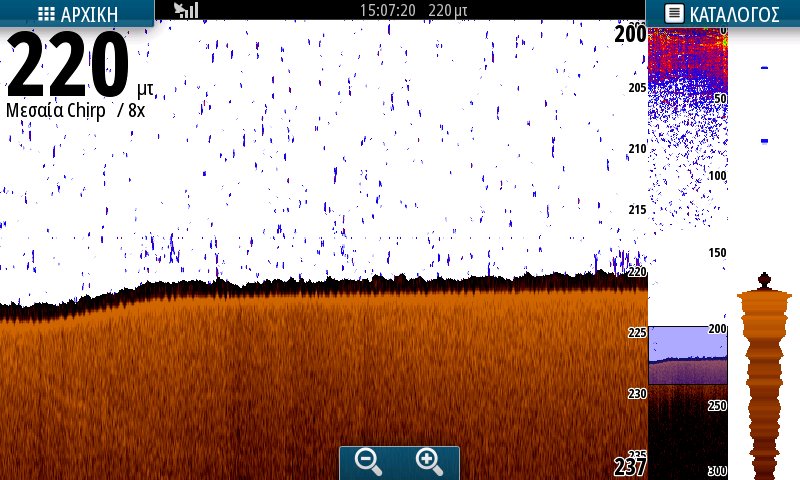

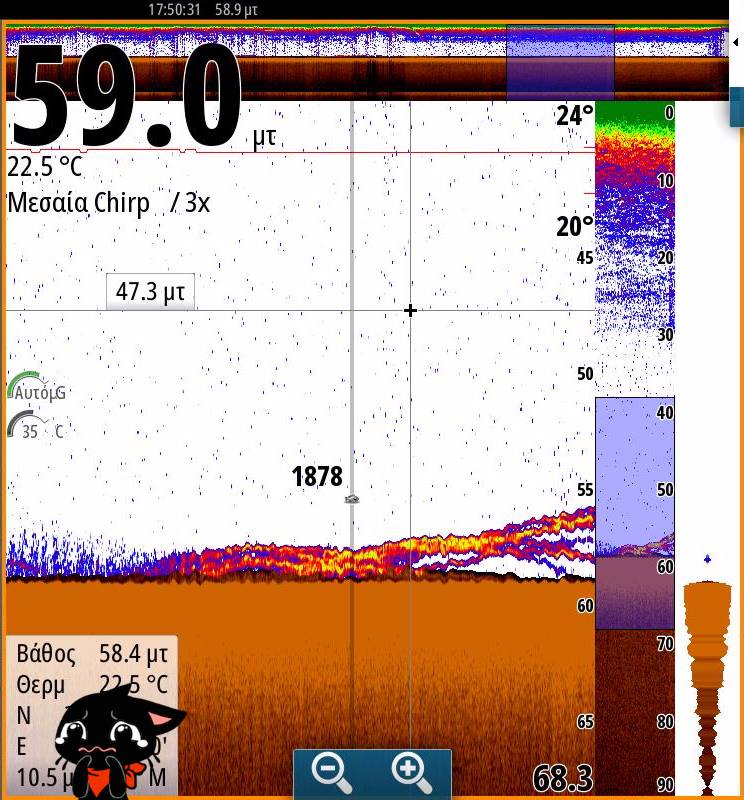

TM150 Chirp with 300watt
pic4""

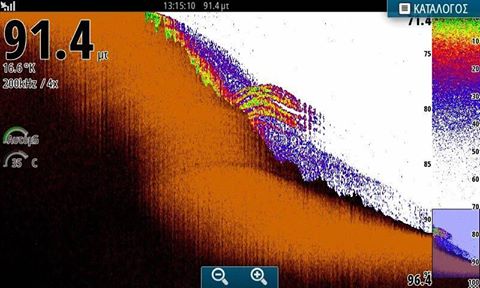

NSS EVO 2 TM 265 MED-LOW
pic4""

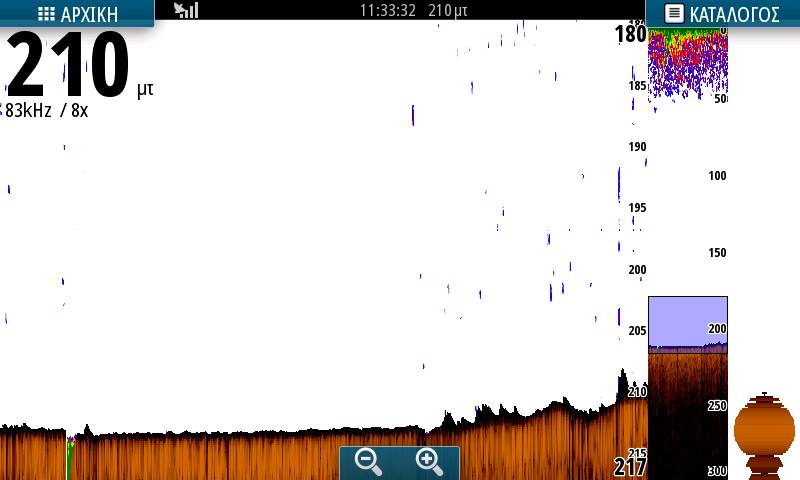

83 khz tm 150
pic4""
200khz balades with tm 150
pic4""
NSS7 TM150M
pic4""
Go7 xse tm 150
pic4""
NSS evo2 + 200 kHz P66
pic4""
Evo2 - P66 200 kHz
pic4""
Evo2 TM150
pic4""

Photos

pic4""
SIMRAD NSS Evo3 12"inch
pic4""
SIMRAD NSS Evo3 12"inch
pic4""
SIMRAD NSS Evo3 12"inch
pic4""
SIMRAD NSS Evo3 12"inch
pic4""
SIMRAD NSS Evo3 12"inch
pic4""
SIMRAD NSS Evo3 12"inch
pic4""
SIMRAD NSS Evo3 12"inch
pic4""
SIMRAD NSS Evo3 12"inch
