SIMRAD S2009 Fish Finder with CHIRP 9"inch  SIMRAD
SIMRAD S2009 Fish Finder with CHIRP 9"inch  SIMRAD
Product is available with up to 12 installments.
Applies only to a combination of products that accept installments.
Simrad S2009 Dedicated Fish Finder, 9-inch portrait display. fish-finder with integrated Broadband Sounder™ module and CHIRP technology
Model: S2009
Price: 1,200.00€
Price with VAT: 1,488.00€
Upon Order
Quantity:


The Simrad S2009 Fish Finder combines the Broadband Sounder™ module with CHIRP technology, 9-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation. Robust yet compact with both bracket and flush-mount installation options, the S2009 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.

Key features

  • Dedicated fish-finder with integrated Broadband Sounder™ module and CHIRP technology
  • High depth penetration and ping speed
  • Vertical heave compensation
  • 9-inch 480x800-pixel portrait LCD
  • High-brightness display ideal for outside installation
  • See clearly with White Line, White Marker, and Colour Erase features
  • Simple operation with 8 direct-access menu keys
  • Bracket and flush mounting options (bracket included)
  • Full-sized SD card slot for logs and software updates
  • Ethernet, NMEA0183 & NMEA2000 connectivity. Full ethernet networking avaliable via RTM-2 Software Update. June 2016
  • Integrated Single-Channel Broadband Sounder™ Module

The S2009 includes a Broadband Sounder™ module with plug-and-play transducer port, compatible with Simrad and Airmar transducers equipped with blue 7-pin connectors. Adapters are available to allow easy and cost-effective retrofit of existing Simrad, Airmar, and other third-party transducers.

Display

Display Resolution 480 x 800
Display Type 9-inch LED-backlit Colour TFT LCD
Brightness 1200 cd/m2
Display Size 9-inch portrait

Overview

Output Power 1 kW RMS
Echosounder Max Depths 3,000 m / 10,000 ft (transducer-dependent)
Echosounder Transducers Standard Broadband and single-channel CHIRP Transducers
Echosounder Frequencies CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz

Physical/Environmental

Product Width 224.3 mm / 8.83 in
Product Depth 82.3 mm / 3.24 in
Product Height 260.1 mm / 10.24 in
Operating temperature 15°C to +55°C (5°F to 131°F)
Water Resistance IPX7

Power

Power Supply (Supply Voltage) 10.8-31.2 V DC
Power consumption 11 W

Networking / Connectors

Connectors 1x NMEA0183, 1x NMEA2000, 1x Ethernet

TRANSDUCERS

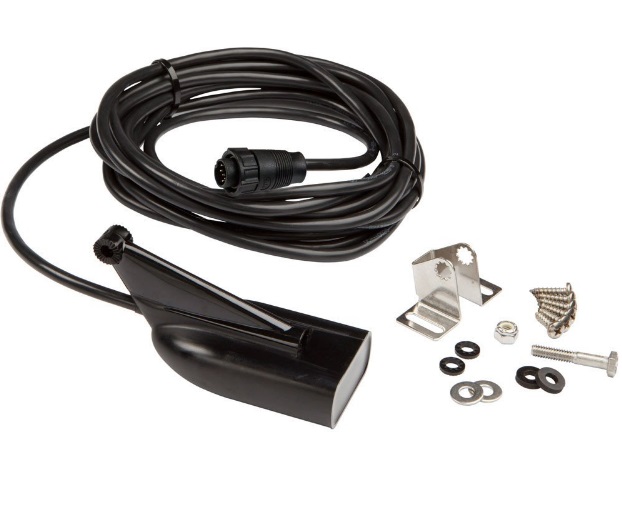

1. MED/HIGH 455/800 9PIN HDI Skimmer MED/HIGH 455/800 transdcuer. 9 pin Black Connector (Click here for photo)
Price 130 € + VÁT (Included in the package)

2.TotalScan™ Skimmer Mid/High 455/800StructureScan (Click here for photo)
   Price  325 € + VAT


3. LOW/HIGH 455/800 HDI SKIMMER xSonic connector HDI SKIMMER L/H 455/800 xSonic connector
      (Click here for photo)
     Price 255 € + VAT

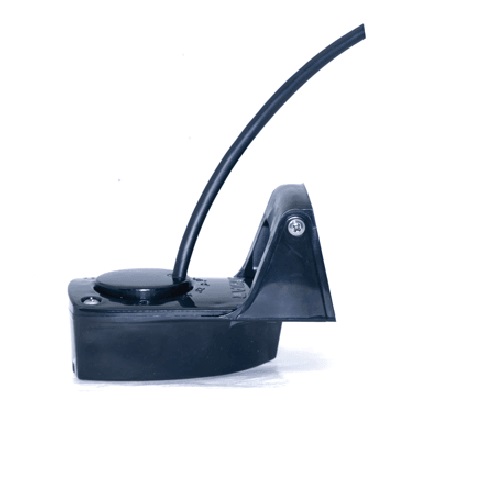

4.  TM 150 TRANSOM MOUNT XDCR: Black 9 pin connector: Cable length 10 m  (Click here for photo)
      Price 325 € + VAT

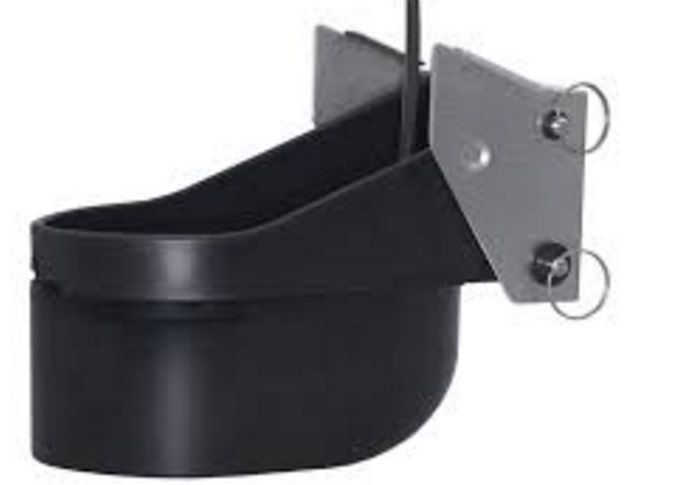

5. XSONIC AIRMAR TM185   (Click here for photo)

Price 940 € + VAT
 S2009 & B785M 600w
S2009 & B785M 600w
 SIMRAD S2009 Fish Finder with CHIRP 9\"inch
 SIMRAD S2009 Fish Finder with CHIRP 9\"inch
 SIMRAD S2009 Drawings
SIMRAD S2009 Drawings
CHIRP Technology

The S2009 includes CHIRP technology, which utilizes frequency-swept sonar pulses to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar at all depth ranges. Simrad technology makes CHIRP available not only on special-purpose CHIRP transducers, but also via traditional single-frequency transducers. Vessels with a suitable transducer already installed can add CHIRP technology simply by installing an S2000-series Fish Finder, offering an extremely cost-effective upgrade.
Product Description

The Simrad S2009 Fish Finder combines the Broadband Sounder™ module with CHIRP technology, 9-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation. Robust yet compact with both bracket and flush-mount installation options, the S2009 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.

Key features

  • Dedicated fish-finder with integrated Broadband Sounder™ module and CHIRP technology
  • High depth penetration and ping speed
  • Vertical heave compensation
  • 9-inch 480x800-pixel portrait LCD
  • High-brightness display ideal for outside installation
  • See clearly with White Line, White Marker, and Colour Erase features
  • Simple operation with 8 direct-access menu keys
  • Bracket and flush mounting options (bracket included)
  • Full-sized SD card slot for logs and software updates
  • Ethernet, NMEA0183 & NMEA2000 connectivity. Full ethernet networking avaliable via RTM-2 Software Update. June 2016
  • Integrated Single-Channel Broadband Sounder™ Module

The S2009 includes a Broadband Sounder™ module with plug-and-play transducer port, compatible with Simrad and Airmar transducers equipped with blue 7-pin connectors. Adapters are available to allow easy and cost-effective retrofit of existing Simrad, Airmar, and other third-party transducers.

Tech Specifications

Display

Display Resolution 480 x 800
Display Type 9-inch LED-backlit Colour TFT LCD
Brightness 1200 cd/m2
Display Size 9-inch portrait

Overview

Output Power 1 kW RMS
Echosounder Max Depths 3,000 m / 10,000 ft (transducer-dependent)
Echosounder Transducers Standard Broadband and single-channel CHIRP Transducers
Echosounder Frequencies CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz

Physical/Environmental

Product Width 224.3 mm / 8.83 in
Product Depth 82.3 mm / 3.24 in
Product Height 260.1 mm / 10.24 in
Operating temperature 15°C to +55°C (5°F to 131°F)
Water Resistance IPX7

Power

Power Supply (Supply Voltage) 10.8-31.2 V DC
Power consumption 11 W

Networking / Connectors

Connectors 1x NMEA0183, 1x NMEA2000, 1x Ethernet


Extra Equipment

TRANSDUCERS

1. MED/HIGH 455/800 9PIN HDI Skimmer MED/HIGH 455/800 transdcuer. 9 pin Black Connector (Click here for photo)
Price 130 € + VÁT (Included in the package)

2.TotalScan™ Skimmer Mid/High 455/800StructureScan (Click here for photo)
   Price  325 € + VAT


3. LOW/HIGH 455/800 HDI SKIMMER xSonic connector HDI SKIMMER L/H 455/800 xSonic connector
      (Click here for photo)
     Price 255 € + VAT

4.  TM 150 TRANSOM MOUNT XDCR: Black 9 pin connector: Cable length 10 m  (Click here for photo)
      Price 325 € + VAT

5. XSONIC AIRMAR TM185   (Click here for photo)

Price 940 € + VAT

Instalations

pic4""
S2009 & B785M 600w
pic4""
pic4""

Photos

pic4""
SIMRAD S2009 Drawings

Extra Info

CHIRP Technology

The S2009 includes CHIRP technology, which utilizes frequency-swept sonar pulses to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar at all depth ranges. Simrad technology makes CHIRP available not only on special-purpose CHIRP transducers, but also via traditional single-frequency transducers. Vessels with a suitable transducer already installed can add CHIRP technology simply by installing an S2000-series Fish Finder, offering an extremely cost-effective upgrade.
